Cement Plant Castings And Forgings Rotary Kiln Support Roller

Name: Cement Plant Castings And Forgings Rotary Kiln Support Roller
Brand: ZTIC
Price: 1 USD

Best Cement Plant Castings And Forgings Rotary Kiln Support Roller wholesale

Certification : ISO/CE

Place of Origin : Henan, China

Brand Name : ZTIC

Supply Ability : 100 Set/Sets per Month

Packaging Details : Simple packaging for CITIC IC cement plant rotary kiln supporting roller

MOQ : 1 Set/Sets

Price : $1,000.00 - $10,000.00 / Set

Model Number : Castings And Forgings

Payment Terms : L/C, T/T

Warranty : 1 YEAR

Condition : New

Voltage : Rotary Kiln support roller

Weight : 3 tons to 50 tons, 3 tons to 200 tons

Standard : ASTM,BS,NF,DIN,JIS and so on;

Application : widely used in the area of cement mill,rotary kiln

Heat Treatment : Normalized, normalized and tempered,quench and tempered

Machining : Rough machined,semi-finished machined,finished machined

Material : Carbon steel,low alloy steel

Port : QingDao

Contact Now

Cement Plant Castings And Forgings And Rotary Kiln Support Roller

Product Description

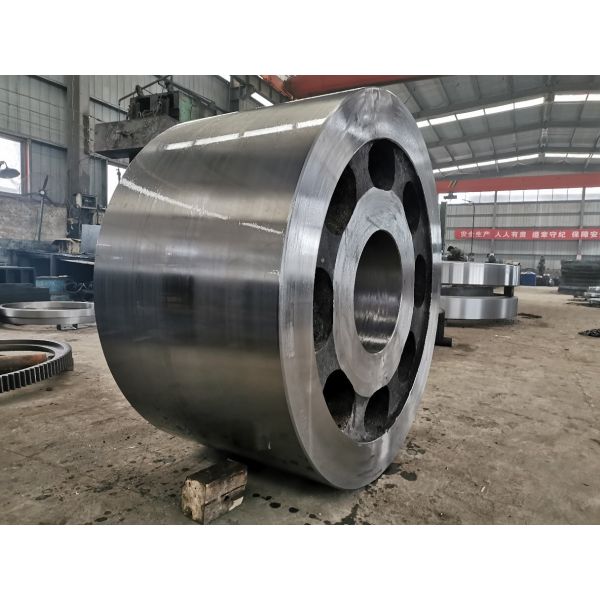

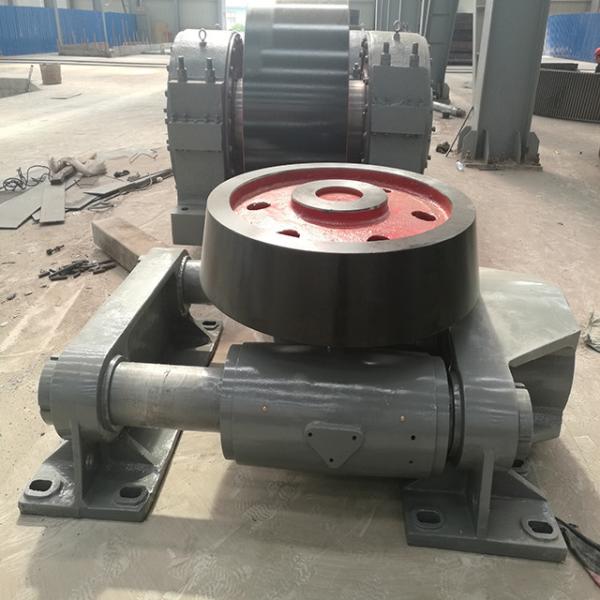

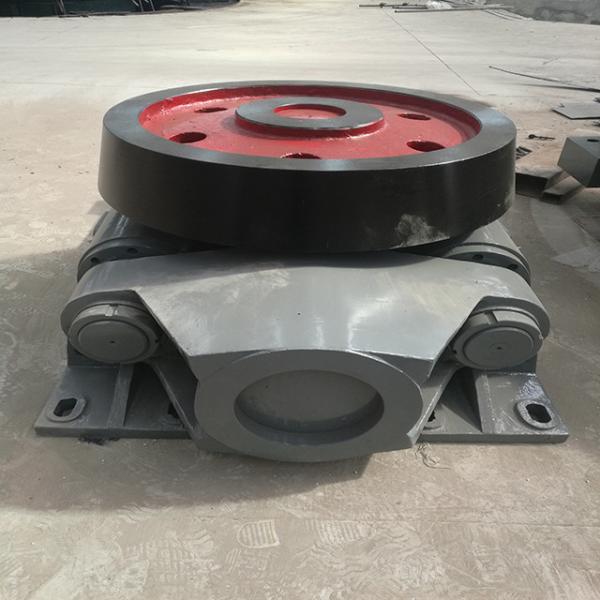

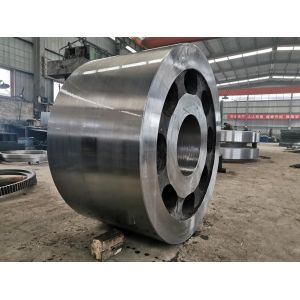

Rotary Kiln Support Roller
Kiln Support Rollers are backed by latest technology and provide desired support to cables and other related products. These support rollers are driven to rotate using friction between roller surface and web. The small friction torque of the roller bearings also allow higher speed operations and helps in avoiding possibilities of slippage due to presence of large air film between roller surface and web.

Features :
Coming with small friction torque of roller bearings
Rollers are close together that decrease pulling tension
Manufactured as per defined industry standards
Can also be custom designed as per client's specific requirements
Durable finish and reliable performance
Rotary Kiln supporting roller:Cemen Rotary Kiln supporting roller and Lime Rotary Kiln supporting roller
We bring forth to our customers Kiln Support Roller for a Rotary Kiln that are designed by our experienced processionals, who hold vast knowledge in this domain. Our professionals uses refractory material that are lined to protect the steel shell and reduce radiation losses.

We are manufacturer and reputed suppliers for the Kiln Support Rollers Assembly for various plants as mentioned below:

Sponge iron plants
50tpd, 100tpd, 200tpd, 300tpd, 350tpd, 500tpd plants for various design consultants in markets, like:
od1700mm x id550 x 880mm
od1800mm x id500 x 1000mm
od1000mm x id320/300 x 560/550mm
od400mm x id160 x 240mm or any customized design.
Cements plants for any capacities
Alumina plants
Phoshphate mines
Kaolin & bentonite plants
Weight: from 3 tons to 200 tons per piece

The supporting roller is the necessary part of the rotary kiln.
We are professional in manufacturing the fittings for large mining machinery. Our supporting tyre and roller is mainly used on large rotary kiln.
Our casting steel piece is mostly lighter than 200 tons. After the ultrasonic flaw detection, our product reaches the second level of the GB standard.

Material:Carbon steel,low alloy steel:ZG20SiMn,ZG50Mn,ZG35SiMn,ZG35CrMo,ZG35SiMnMo,
ZG42CrMo,ZG40Cr,ZG34CrNiMo,ZG40Mn and so on.

Process:Place a pattern in sand to create a mold;
Incorporate a gating system;
Remove the pattern;Fill the mold cavity with molten metal;
Allow the metal to cool;
Break away the sand mold and remove the casting.
Heat treatment.
Chemical composition test,UT/MT test,mechanical property test and so on.
Surface treatment and other requirement from customer.

Standard&certificate:ASTM,BS,NF,DIN,JIS and so on;
ISO 9001:2000;BV,CCS,DNV,NK,RINA,KR and so on.

Weight:from 3 tons to 200 tons per piece

Application:
The products can be widely used in the area of cement mill,rotary kiln,shipbuilding,
metallurgy,mine,sugar mill,powder plant,rail road,engine bed and so on.

We can provide OEM service for cement mill and rotary kiln casting parts,marine steel casting parts,sugar mill machinery parts with carbon steel or low alloy steel.
The casting parts can be supplied as following treatment:
Heat Treatment: Normalized, normalized and tempered,quench and tempered
Machining: Rough machined,semi-finished machined,finished machined

Quality warranty and testing equipment:
Magnetic powder inspection
UT nondestructive test
Dye inspection
Leeb hardness testing equipment
Mechanical property test equipment
Metallographic microscope
Direct-reading spectrometer

Features of our products:
Durable
Excellent tensile strength
Accurate level of tolerance
Good dimensional accuracy
Superb surface finishing
Easy to use and install

Product Display of Castings And Forgings

Castings And Forgings

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
